Attaching your Silo Mount


Permanently attach the Mount to almost any flat surface for a convenient way to secure your Silo 6G watercooler wherever needed. Here’s how:

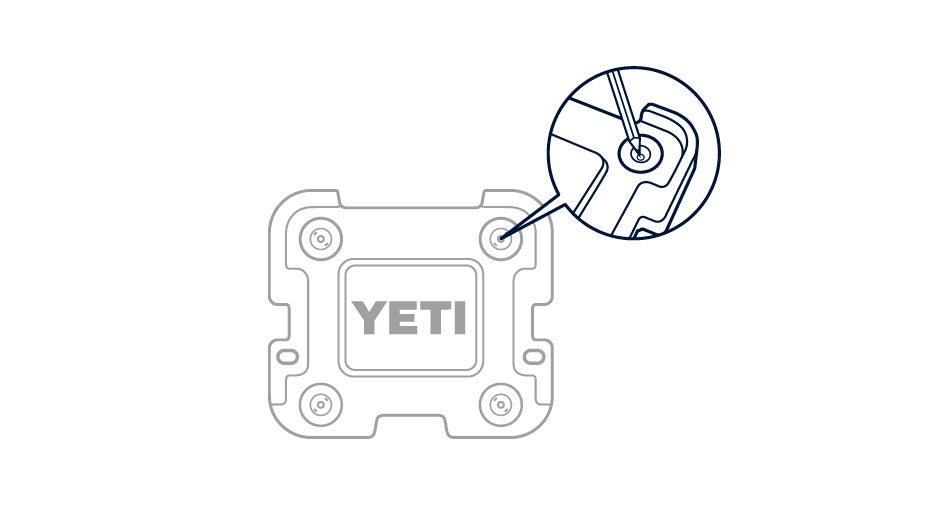

Step 1

Place mount over desired flat location. Use mount as a stencil, mark drill hole locations.

Step 1

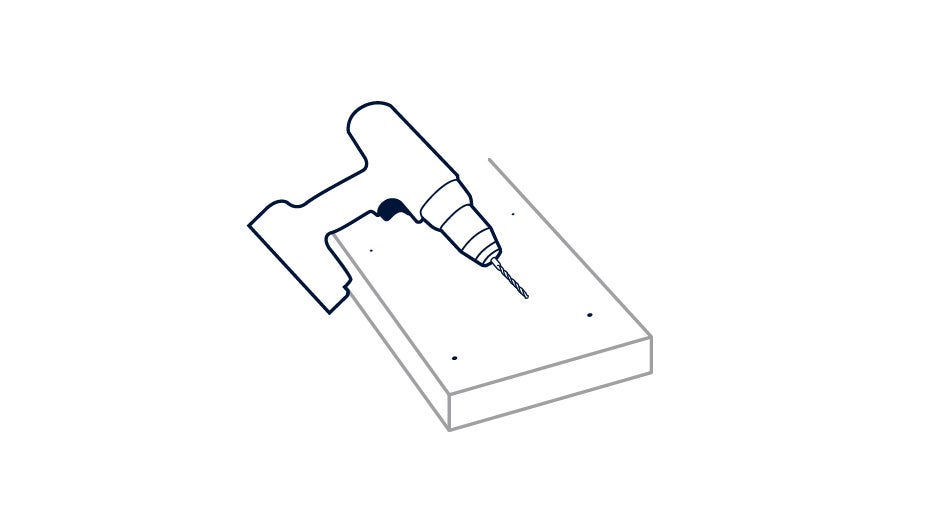

Step 2

Drill holes in marked locations. Suggested drill bit size: 9/32”.

Step 2

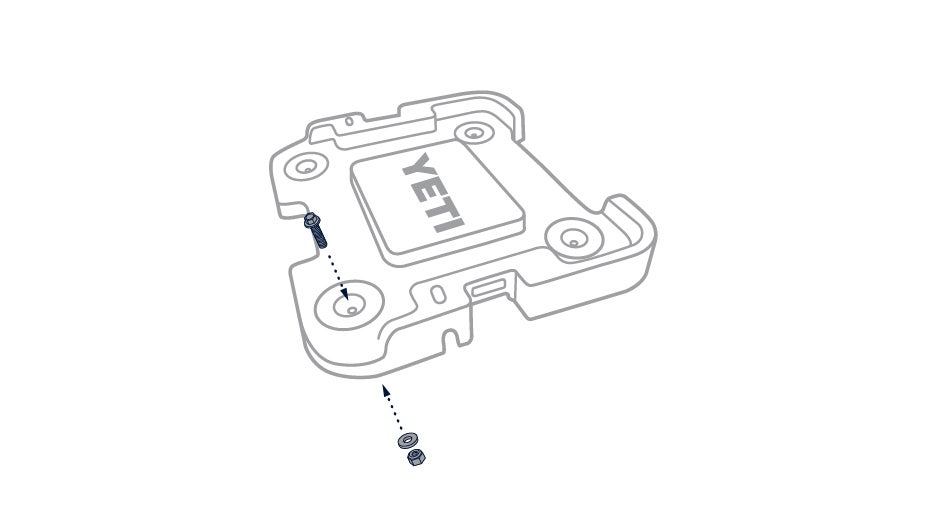

Step 3

Align mount over drilled holes, insert bolt into top of mount. Apply locking nut + washer to opposite side of bolt under mount. Tighten bolt using 3/8” socket & wrench. Repeat process for a total of 4 times.

Step 3

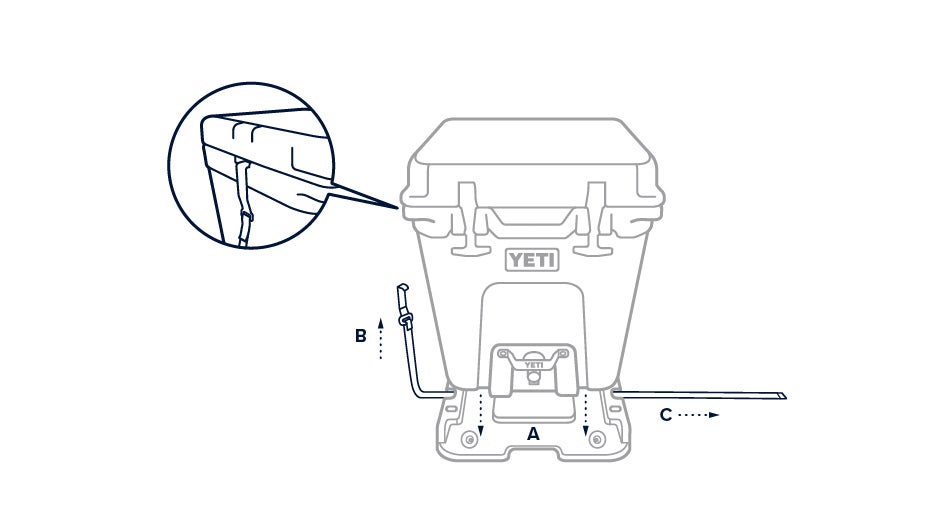

Step 4

Place Silo 6G Water Cooler onto mount, attach flat hook to slot on Silo, run open end of strap webbing under mount through center opening, pull all way through.

Step 4

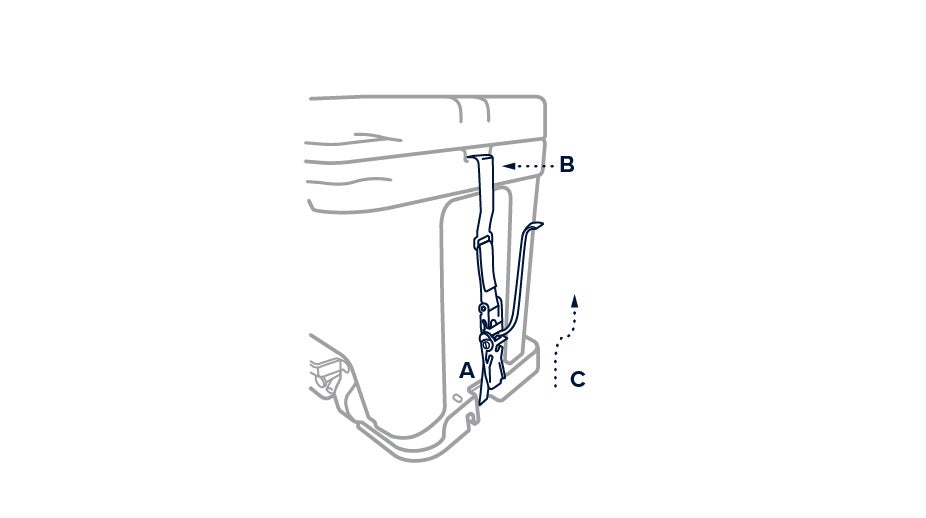

Step 5

Insert open end of strap webbing into ratchet, attach ratchet hook to Silo slot, ratchet to desired tension.

Step 5

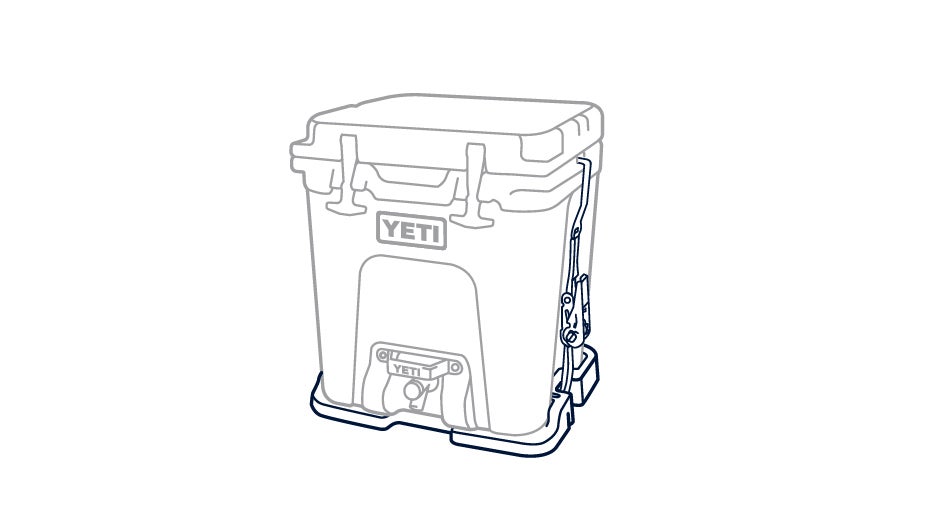

Step 6

Now your Silo Mount should feel secure on your Silo.

Step 6

For more information on Silo, including cleaning and care, visit our FAQs.
